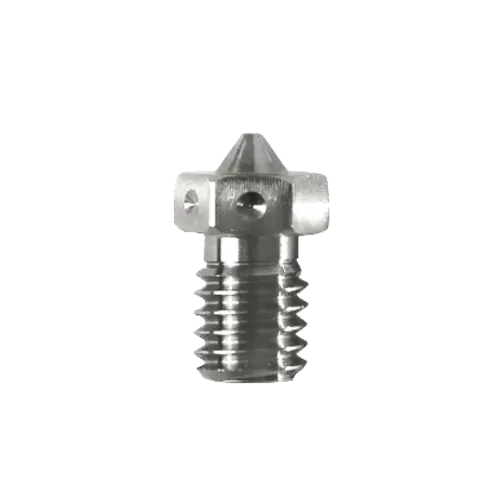

Plated Copper
Our unique plated copper nozzles are suitable for high-temperature, non-abrasive applications. The nickel plating provides a reduced-stick surface, ideal for situations where temperatures are too hot for a silicone sock. Rated to a maximum temperature of 500°C.
Please note - V6 nozzles are not compatible with Volcano, SuperVolcano or Cyclops heater blocks.
Bringing together community feedback and our extensive testing, we have redesigned our nozzles from the ground up.
The new internal geometry of v6 Nozzles is optimised to reduce back-pressure, this ensures smooth,easy flow of filament whilst improving the effectiveness of retractions. The bottom flat surface of the nozzle which flattens down the layer is custom to each nozzle size, for small nozzles a small nozzle tip gives you high precision. On the larger nozzles, a nozzle tip assists in the smooth printing of larger layers.
All nozzles in the series are now individually identifiable with markings on the flats of the hex head making them even more convenient to work with. See the table below for more information on what these markings mean:
| # Marks | Nozzle Size |
|---|---|
| 0 | 0.15mm |
| 0 | 0.25mm |
| 1 | 0.30mm |
| 2 | 0.35mm |
| 3 | 0.40mm |
| 6* | 0.50mm |
| 4 | 0.60mm |
| 5 | 0.80mm |
Compatibility
- v6 Nozzles are backwards compatible, so can be used to upgrade your v5 HotEnd.
- If you are using a v6 HeatBreak it is recommended that you use a v6 Nozzle.
